KES 29,000

RB5009UG+S+IN

Read 0 reviews

Add to wishlist Share

Sku: 4JDIV0MNCT
Categories: Networking Tools and Accessories

Product Detail

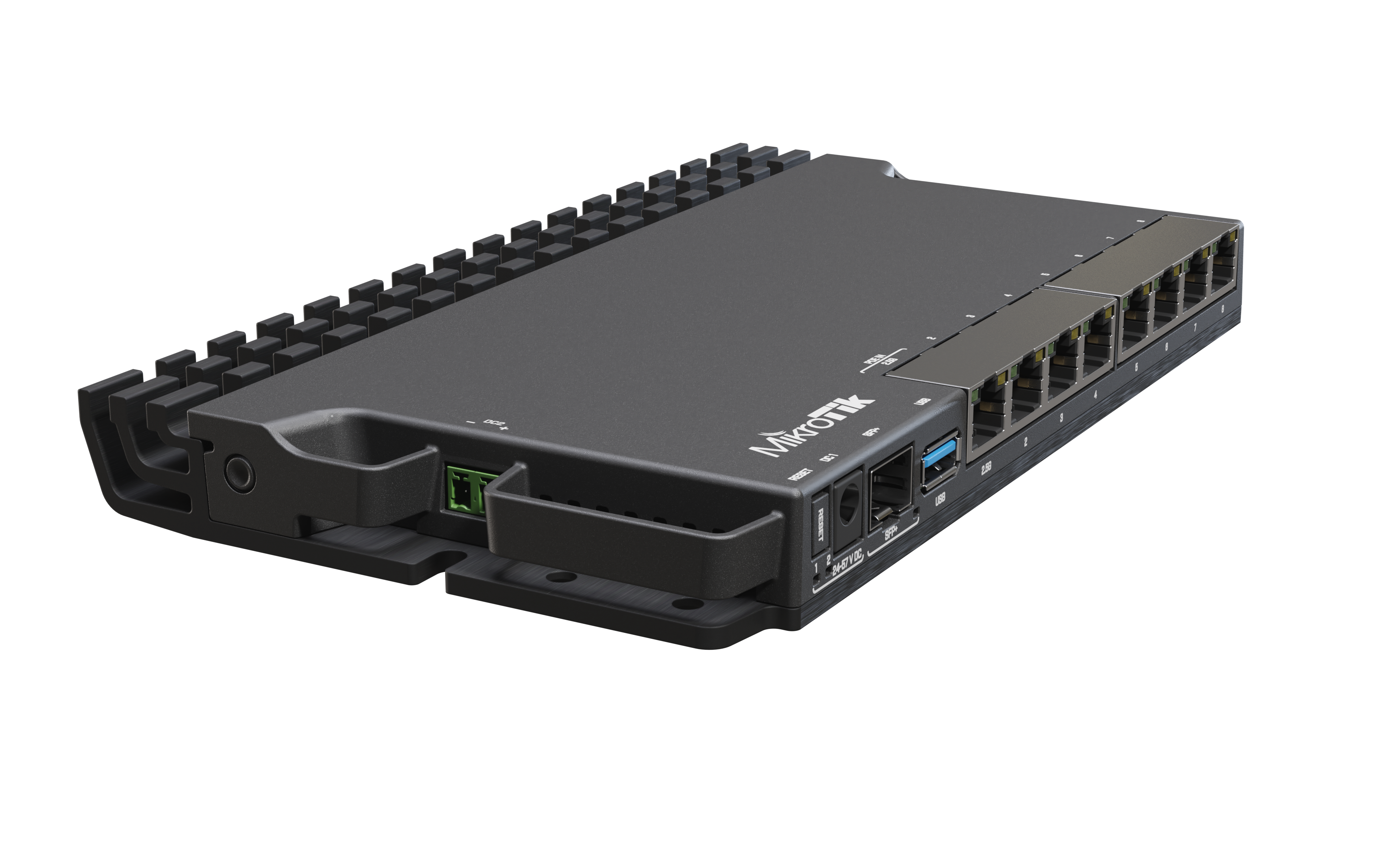

The ultimate heavy-duty home lab router with USB 3.0, 1G and 2.5G Ethernet and a 10G SFP+ cage. You can mount four of these new routers in a single 1U rackmount space! Unprecedented processing power in such a small form factor.

ARM64

Quad-core CPU

2.5G

PoE

ROS v7

SFP/SFP

Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!

The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!

RB5009UG+S+IN can be powered in 3 different ways:

a) PoE-in from Ethernet port #1

b) DC Jack

c) 2-pin terminal (5.08mm 1x2pin) on the side

Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.

With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.

Features

Specifications

Product code
RB5009UG+S+IN
Suggested price
$219.00
Architecture
ARM 64bit
CPU
88F7040
CPU core count
4
CPU nominal frequency
350-1400 (auto) MHz
CPU Threads count
4
Switch chip model
88E6393
Dimensions
220 x 125 x 22 mm
RouterOS license
5
Operating System
RouterOS v7
Size of RAM
1 GB
Storage size
1 GB
Storage type
NAND
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 60°C

Powering

Number of DC inputs
3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage
24-57 V
2-pin terminal input Voltage
24-57 V
Max power consumption
25 W
Max power consumption without attachments
14 W
PoE in
802.3af/at
Cooling type
Passive
PoE in input Voltage
24-57 V

Ethernet

10/100/1000 Ethernet ports
7
Number of 2.5G Ethernet ports
1

Fiber

SFP+ ports
1

Peripherals

Number of USB ports
1
USB Power Reset
Yes
USB slot type
USB 3.0 type A
Max USB current (A)
1.5

Other

CPU temperature monitor
Yes

Certification & Approvals

Certification
CE, EAC, ROHS

Included parts

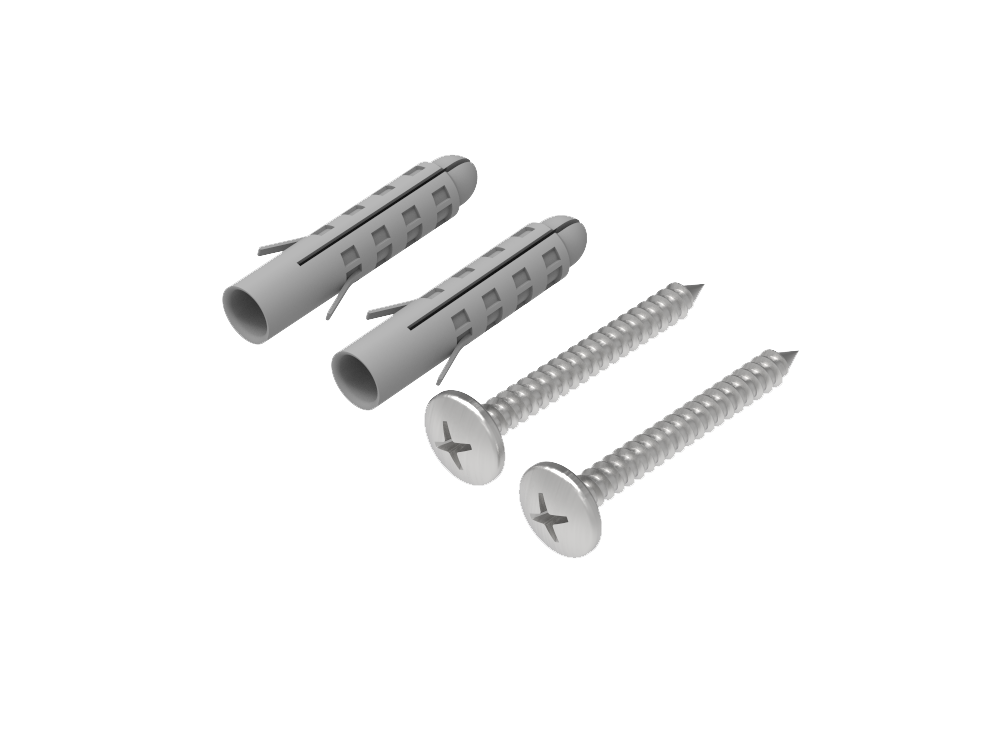

K-55 screw kit

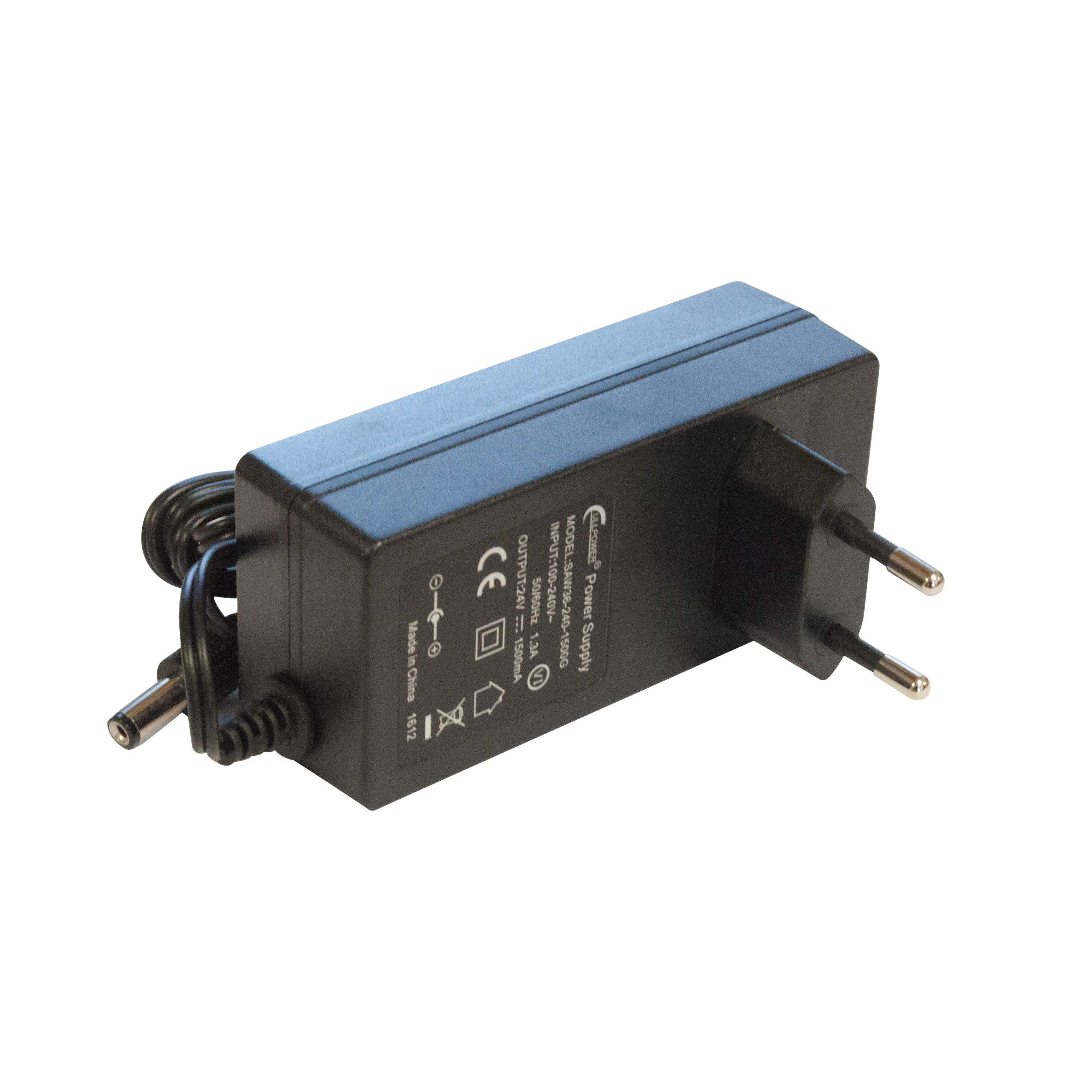

24V 1.5A power adapter

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

Ethernet test results

RB5009UG+S+IN | 88F7040 all port test
Mode | Configuration | 1518 byte | 512 byte | 64 byte
kpps | Mbps | kpps | Mbps | kpps | MbpsBridging | none (fast path) | 811.2 | 9851.4 | 2332 | 9551.9 | 5768.4 | 3138
Bridging | 25 bridge filter rules | 811.2 | 9851.4 | 1238.3 | 5072.2 | 1235.6 | 672.2
Routing | none (fast path) | 811.2 | 9851.4 | 2332 | 9551.9 | 4969.4 | 2703.3
Routing | 25 simple queues | 811.2 | 9851.4 | 1126 | 4612 | 1095 | 595.7
Routing | 25 ip filter rules | 771.2 | 9365.6 | 755.9 | 3096.2 | 761 | 414

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RB5009UG+S+IN | 88F7040 IPsec throughput
Mode | Configuration | 1400 byte | 512 byte | 64 byte
kpps | Mbps | kpps | Mbps | kpps | MbpsSingle tunnel | AES-128-CBC + SHA1 | 120.9 | 1354.1 | 119.4 | 489.1 | 124.3 | 63.6
256 tunnels | AES-128-CBC + SHA1 | 126.5 | 1416.8 | 125.3 | 513.2 | 120.3 | 61.6
256 tunnels | AES-128-CBC + SHA256 | 126.5 | 1416.8 | 125.3 | 513.2 | 120.3 | 61.6
256 tunnels | AES-256-CBC + SHA1 | 125.8 | 1409 | 123.2 | 504.6 | 114.3 | 58.5
256 tunnels | AES-256-CBC + SHA256 | 125.8 | 1409 | 123.2 | 504.6 | 114.3 | 58.5

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration; different configurations most likely will result in lower results
