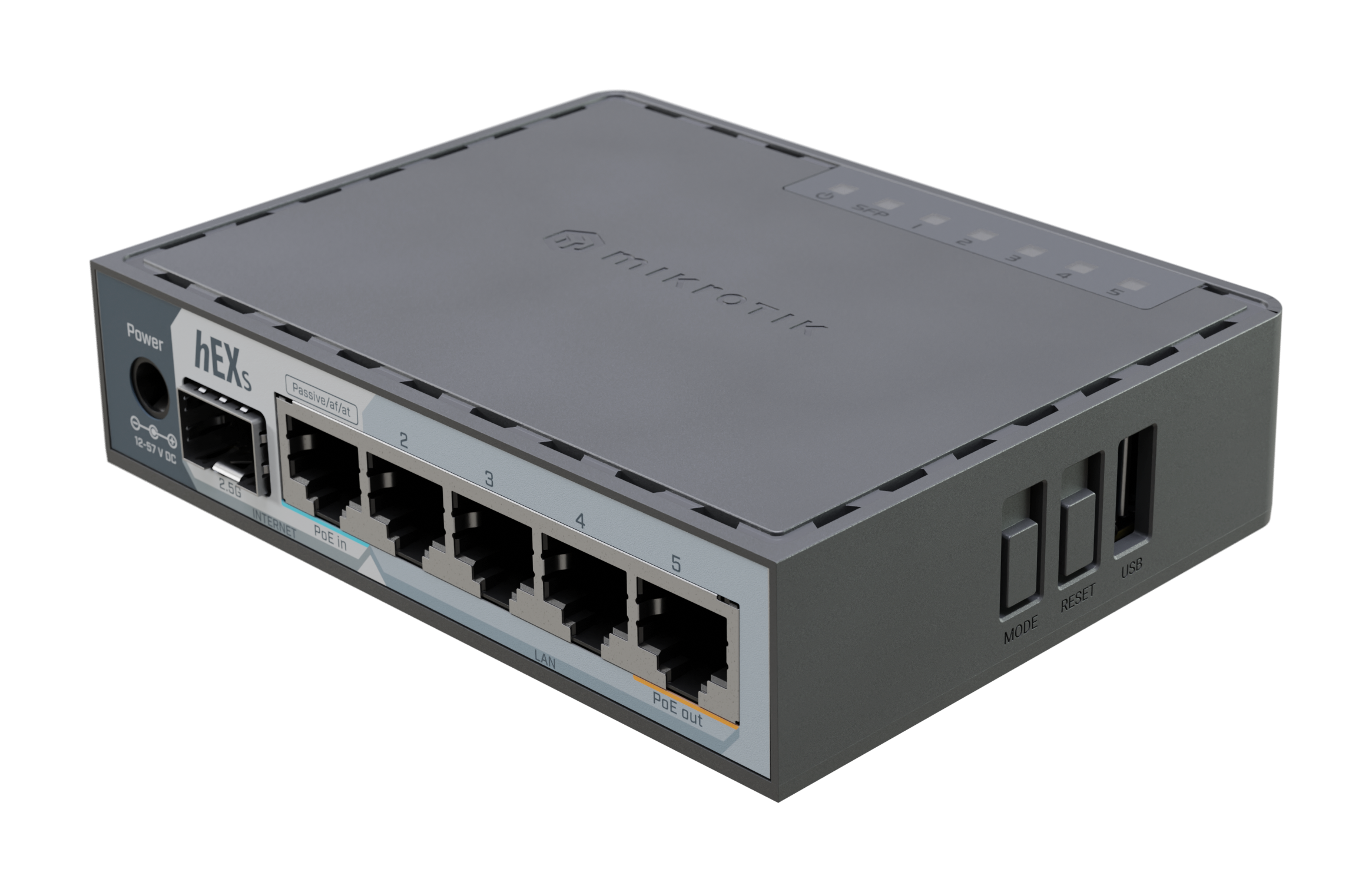

hEX S (2025)

Read 0 reviews

Sku: 4JDXWEBCEB
Categories: Networking Tools and Accessories

Product Detail

A compact, affordable wired router featuring a 2.5G SFP port, 5x Gigabit Ethernet, PoE out, USB, and a fast dual-core CPU – ideal for homes, offices, or underfunded labs that need reliable performance.

Features

Specification

Specifications

Product code
E60iUGS
Suggested price
$69.00
Architecture
ARM 32bit
CPU
EN7562CT
CPU core count
2
CPU nominal frequency
950 MHz
CPU Threads count
2
Switch chip model
EN7523
RouterOS license
4
Operating System
RouterOS v7
Size of RAM
512 MB
Storage size
128 MB
Storage type
NAND
MTBF
Approximately 100'000 hours at 25C
Tested ambient temperature
-40°C to 70°C

Powering

Number of DC inputs
2 (DC jack, PoE-IN)
DC jack input Voltage
12-57 V
Max power consumption
23 W
Max power consumption without attachments
5 W
PoE in
802.3af/at
Cooling type
Passive
PoE in input Voltage
18-57 V

PoE-out

PoE-out ports
Ether5
PoE out
Passive PoE up to 57V
Low voltage PoE-Out current limit
0.5 A
High voltage PoE-Out current limit
0.5 A

Ethernet

10/100/1000 Ethernet ports
5
Number of 1G Ethernet ports with PoE-out
1

Fiber

SFP ports
1 (2.5G supported)

Peripherals

Number of USB ports
1
USB Power Reset
Yes
USB slot type
USB 3.0 type A
Max USB current (A)
1

Other

CPU temperature monitor
Yes
PCB temperature monitor
Yes
Voltage Monitor
Yes
Mode button
Yes

Certification & Approvals

Certification
CE, EAC, ROHS
IP
20

Included parts

24V 1.2A power adapter

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

Ethernet test results

E60iUGS | EN7562CT 1G all port test
Mode | Configuration | 1518 byte | 512 byte | 64 byte
kpps | Mbps | kpps | Mbps | kpps | MbpsBridging | none (fast path) | 340.3 | 4132.4 | 389 | 1593.5 | 402.6 | 219
Bridging | 25 bridge filter rules | 190.6 | 2315.1 | 197 | 806.8 | 193.9 | 105.5
Routing | none (fast path) | 300.3 | 3646.6 | 340.5 | 1394.7 | 342.2 | 186.1
Routing | 25 simple queues | 173.1 | 2102.6 | 174.3 | 713.8 | 171.9 | 93.5
Routing | 25 ip filter rules | 117.8 | 1430.3 | 121.6 | 498.1 | 117 | 63.6

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

E60iUGS | EN7562CT IPsec throughput
Mode | Configuration | 1400 byte | 512 byte | 64 byte
kpps | Mbps | kpps | Mbps | kpps | MbpsSingle tunnel | AES-128-CBC + SHA1 | 31.4 | 351.7 | 34.8 | 142.5 | 37.2 | 20.2
256 tunnels | AES-128-CBC + SHA1 | 16.8 | 188.2 | 17.6 | 72.1 | 18.5 | 10.1
256 tunnels | AES-128-CBC + SHA256 | 16.9 | 189.3 | 17.9 | 73.3 | 18.7 | 10.2
256 tunnels | AES-256-CBC + SHA1 | 16.8 | 188.2 | 17.6 | 72.1 | 18.7 | 10.2
256 tunnels | AES-256-CBC + SHA256 | 16.9 | 189.3 | 17.9 | 73.3 | 18.9 | 10.3

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
